Micro-Vu HF5 Vision System | Cylindrical Part Inspection

Micro-Vu HF5

Micro-Vu HF5 2D Cylindrical Measurements

Starting at $14,240

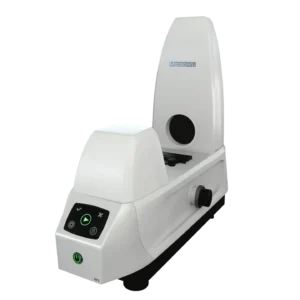

The Micro-Vu HF5 is a field-of-view vision measurement system designed specifically for fast inspection of cylindrical and turned components. By capturing a high-resolution image within a fixed measurement field, the HF5 allows manufacturers to quickly verify critical dimensions on shafts, pins, fasteners, and other round parts.
